Керівництво по електриці Skoda Superb 2 (3T): схеми та розташування реле

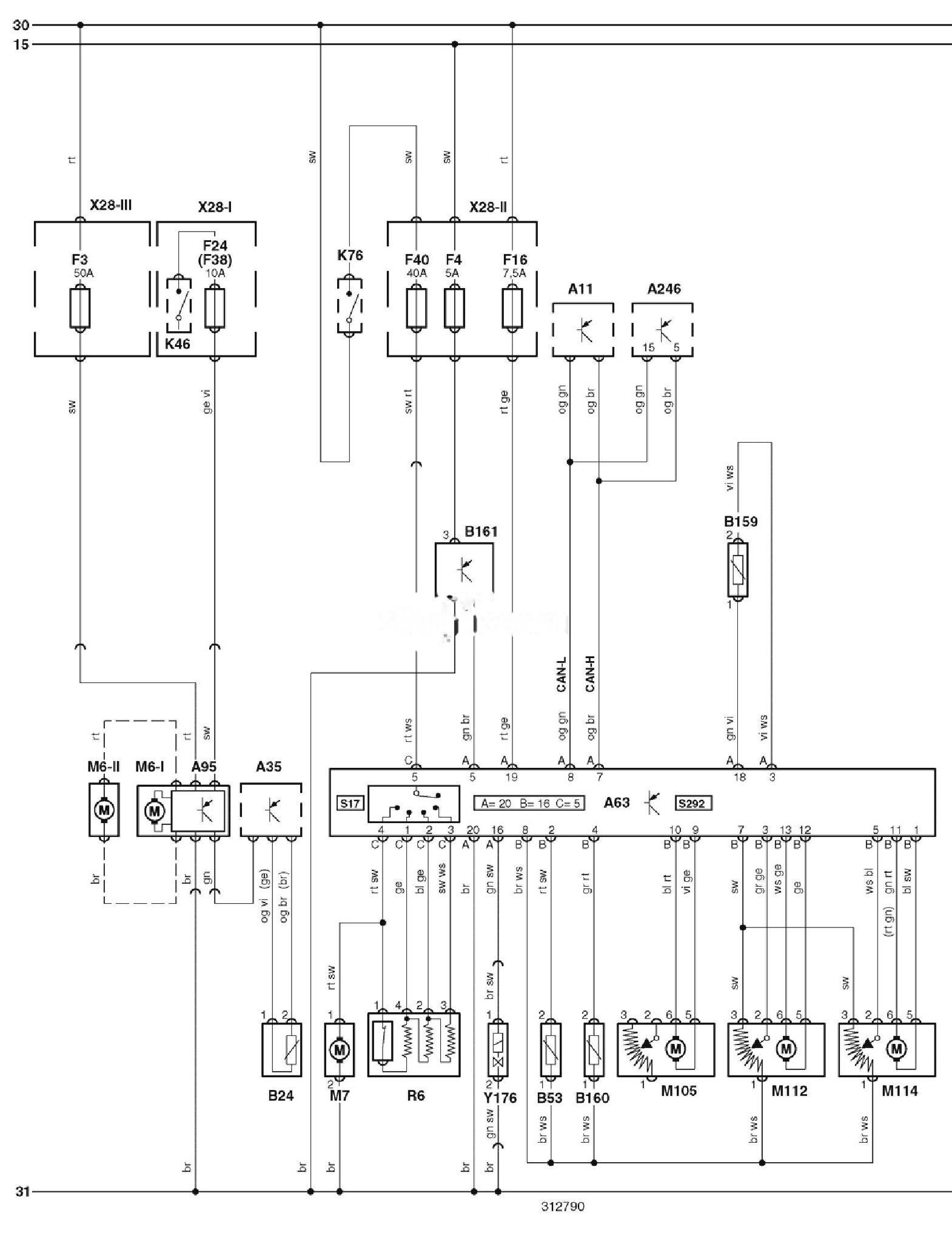

Електросхема кондиціонера тип 1 Skoda Superb 2 (3T)
